Products
Home > Products
Products : High Speed : Analog
P/N Circuit Package VISO
(rms)
(V)		 Data Rate
(Mbit/s)		 CTR*
(%)		 CMR
(V/µs)		 TPHL/TPLH
Max.
(µs)		 TOPR
(℃)		 Picture

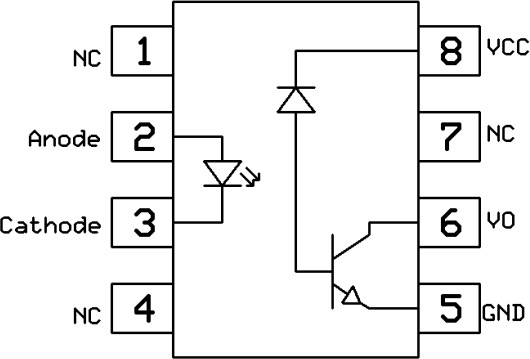

CT4504 DIP-8 5000 1 37~50 30000 0.3/0.5 -55~100

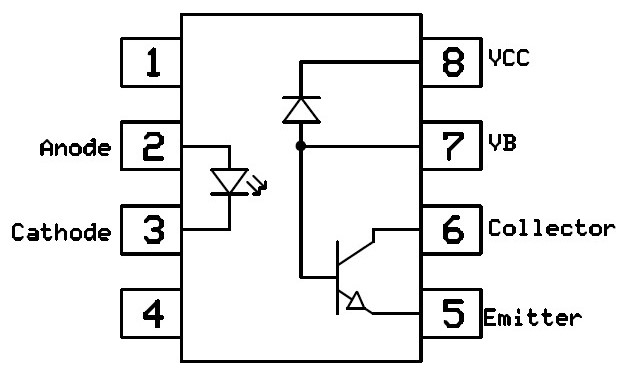

6N135 DIP-8 5000 1 7~50 1000 1.5/1.5 -40~100
6N136 DIP-8 5000 1 19~50 1000 0.8/0.8 -40~100

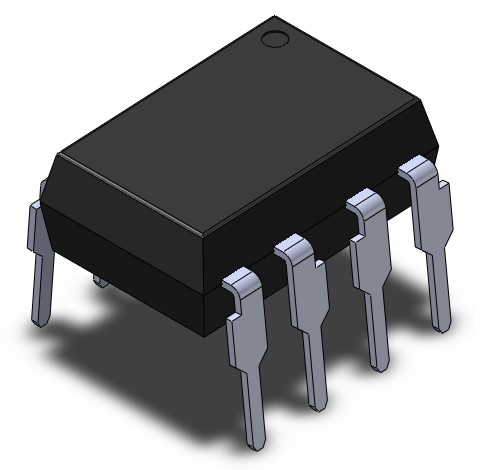

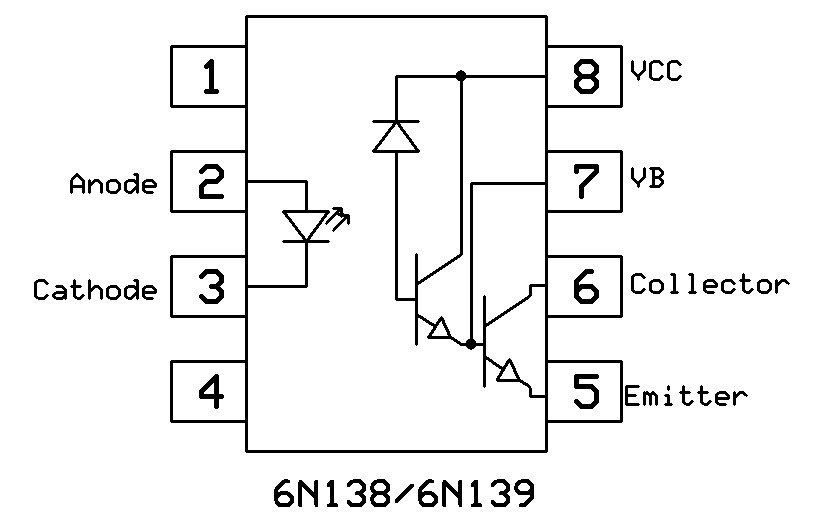

6N138 DIP-8 5000 0.1 300~2000 1000 10/35 -40~85
6N139 DIP-8 5000 0.1 500~2000 1000 1/7 -40~85

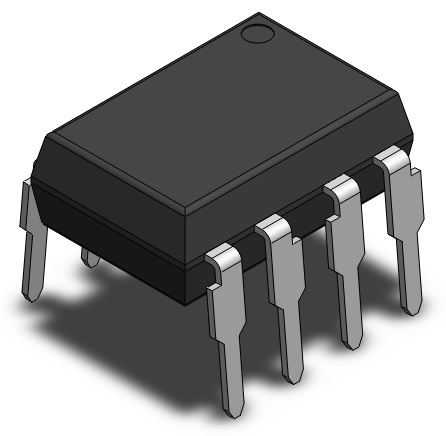

CT4502 DIP-8 5000 1 19~50 15000 1.5/1.5 -40~100

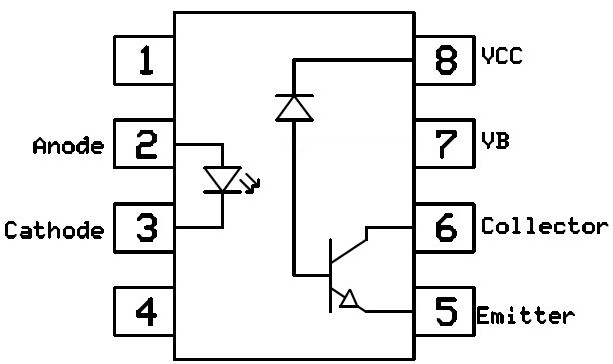

CT4503 DIP-8 5000 1 19~50 15000 0.8/0.8 -40~100
CTM453 MFP-5L 3750 1 20~50 15000 0.8/0.8 -40~85

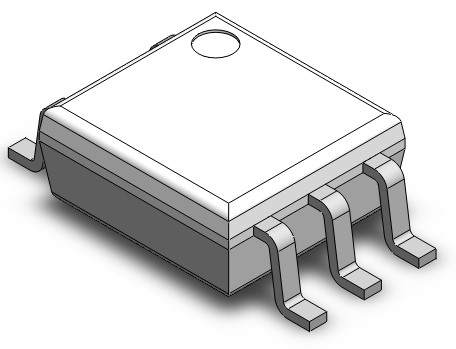

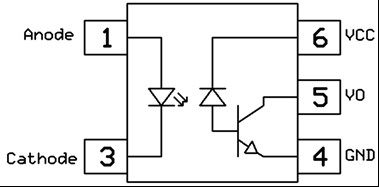

CTM452 MFP-5L 3750 1 20~50 5000 1.5/1.5 -40~85
CTS452 SDIP-6 5000 1 20~50 15000 0.8/0.8 -40~100

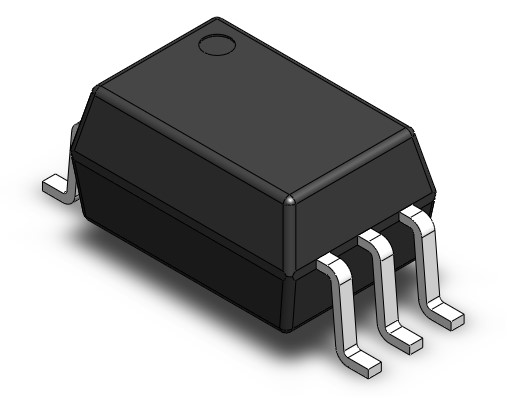

CTS453 SDIP-6 5000 1 20~50 15000 0.8/0.8 -40~100
CTW139 Widebody-8L 5000 0.1 500~2000 1000 1/7 -40~85

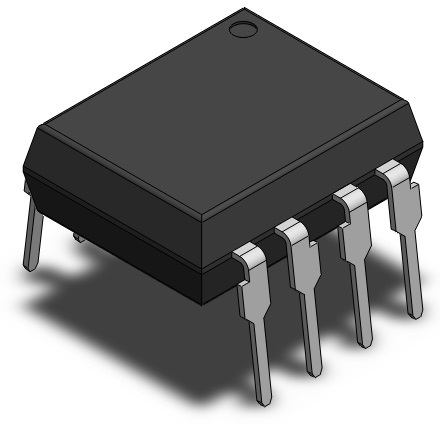

CTW138 Widebody-8L 5000 0.1 300~2000 1000 10/35 -40~85
CTW4502 Widebody-8L 5000 1 19~50 15000 1.5/1.5 -40~100

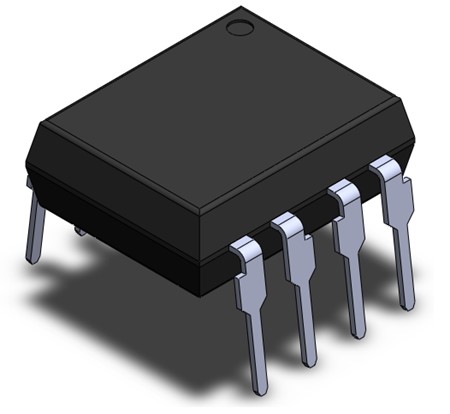

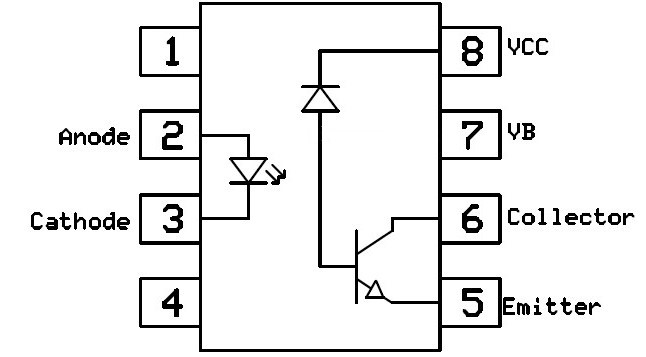

CTW4503 Widebody-8L 5000 1 19~50 15000 0.8/0.8 -40~100
CTW136 Widebody-8L 5000 1 19~50 1000 0.8/0.8 -40~100

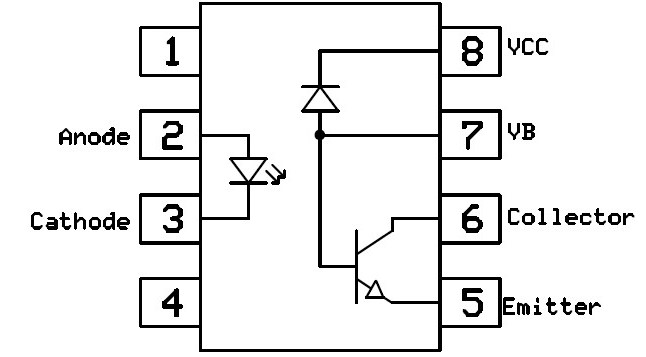

CTW135 Widebody-8L 5000 1 7~50 1000 1.5/1.5 -40~100
*CTR option available
◎Forming option available for DIP-8, Widebody-8L, and SDIP-6
