Products
Home > Products
Products : Photo Coupler : Transistor
P/N Circuit Package VISO
(rms)
(V)		 Input Channel CTR*
(%)		 BVCEO
Min.
(V)		 TOPR
(℃)		 Picture

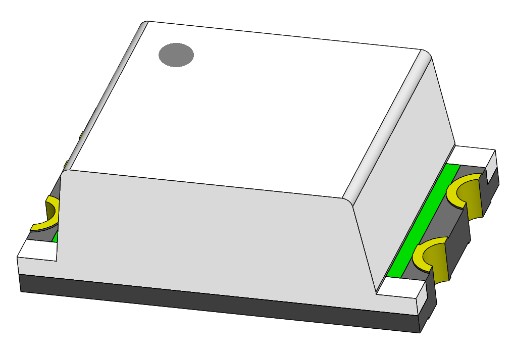

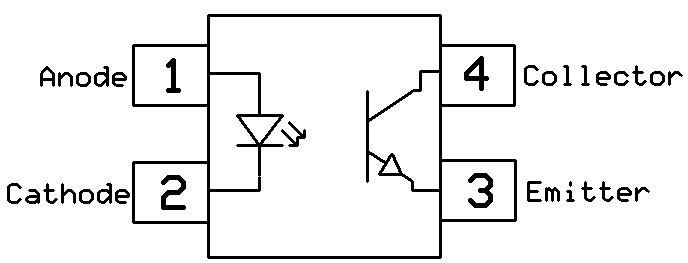

CTP17 DFN 2500 DC 1 100~600 - -55~125
CT814 DIP-4 5000 AC 1 20~300 - -55~110

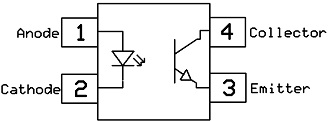

CT816 DIP-4 5000 DC 1 50~600 - -55~110

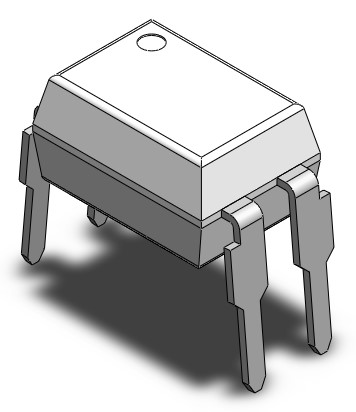

CT816D3 DIP-4 5000 DC 1 300~450 - -55~110
CT817 DIP-4 5000 DC 1 50~600 - -55~110
CT816L DIP-4 5000 DC 1 63~125** - -55~110
4N25 DIP-6 5000 DC 1 Min.20 80 -55~110
4N26 DIP-6 5000 DC 1 Min.20 80 -55~110
4N27 DIP-6 5000 DC 1 Min.10 80 -55~110
4N28 DIP-6 5000 DC 1 Min.10 80 -55~110
4N35 DIP-6 5000 DC 1 Min.100 80 -55~110
4N36 DIP-6 5000 DC 1 Min.100 80 -55~110
4N37 DIP-6 5000 DC 1 Min.100 80 -55~110

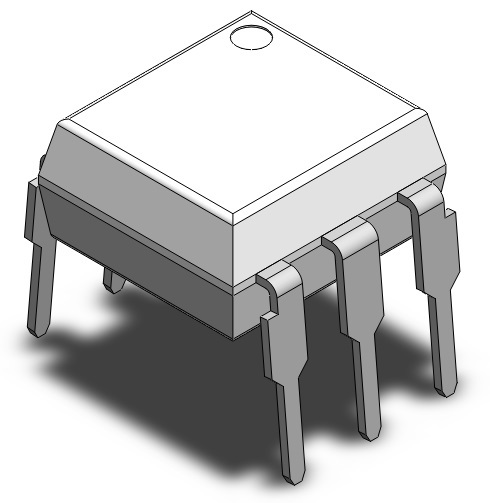

4N38 DIP-6 5000 DC 1 Min.20 80 -55~110
H11A1 DIP-6 5000 DC 1 Min.50 80 -55~110
H11A2 DIP-6 5000 DC 1 Min.20 80 -55~110
H11A3 DIP-6 5000 DC 1 Min.20 80 -55~110
H11A4 DIP-6 5000 DC 1 Min.10 80 -55~110
H11A5 DIP-6 5000 DC 1 Min.30 80 -55~110
CNY17-1 DIP-6 5000 DC 1 40~80 - -55~110
CNY17-2 DIP-6 5000 DC 1 63~125 - -55~110

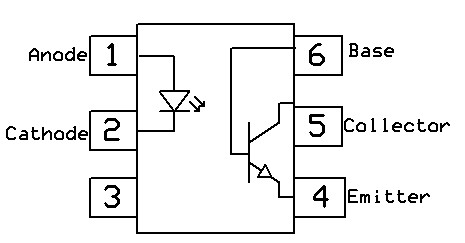

CNY17-3 DIP-6 5000 DC 1 100~200 - -55~110
CNY17-4 DIP-6 5000 DC 1 160~320 - -55~110
CNY17F-1 DIP-6 5000 DC 1 40~80 - -55~110
CNY17F-2 DIP-6 5000 DC 1 63~125 - -55~110

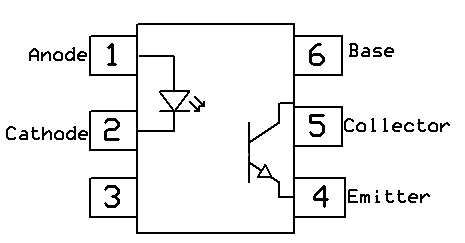

CNY17F-3 DIP-6 5000 DC 1 100~200 - -55~110
CNY17F-4 DIP-6 5000 DC 1 160~320 - -55~110

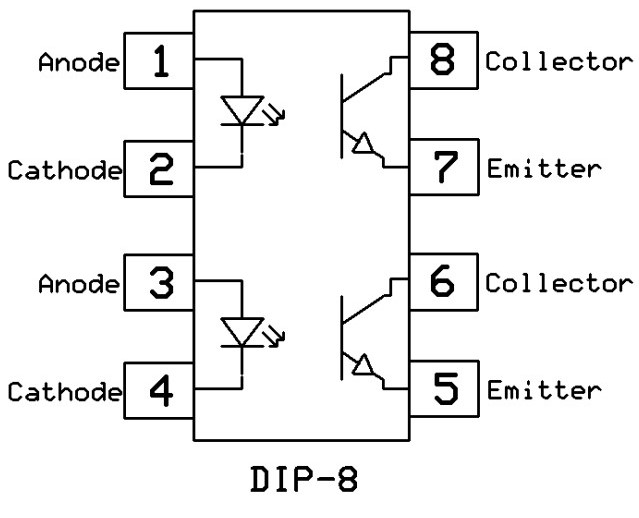

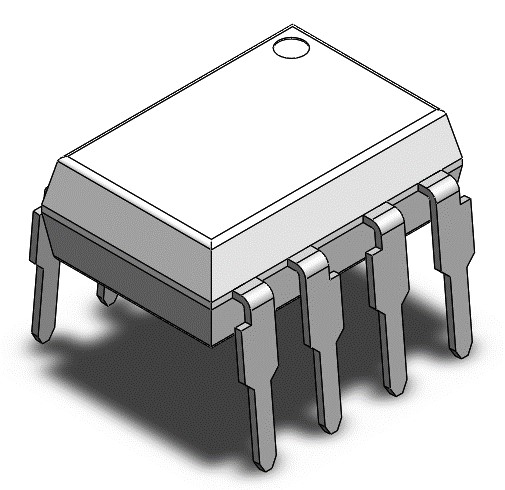

CT827 DIP-8 5000 DC 2 50~600 - -55~110

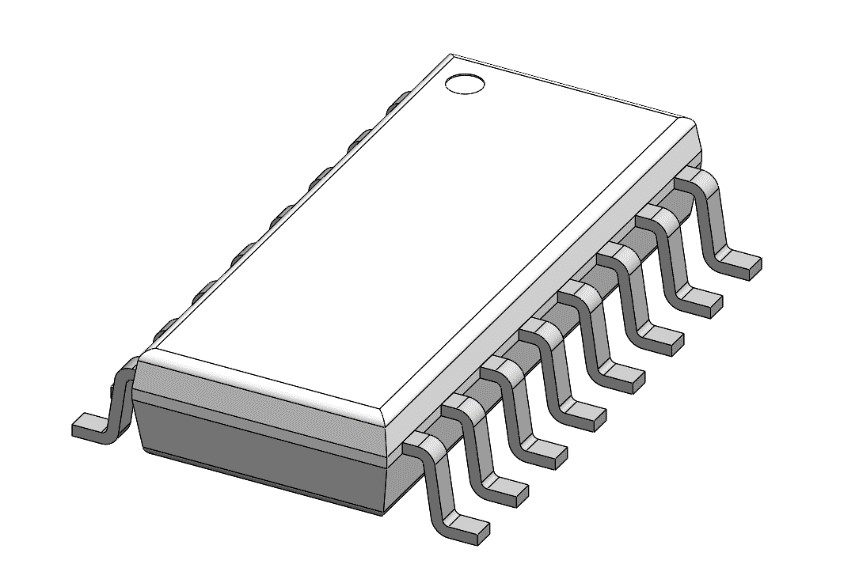

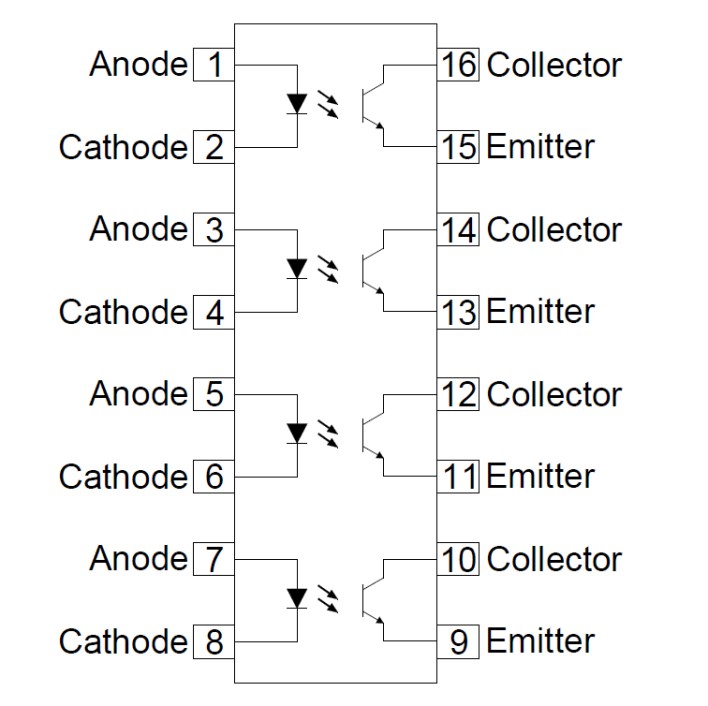

CTH247 Half Pitch MFP-16L 3750 DC 4 50~400 - -55~125

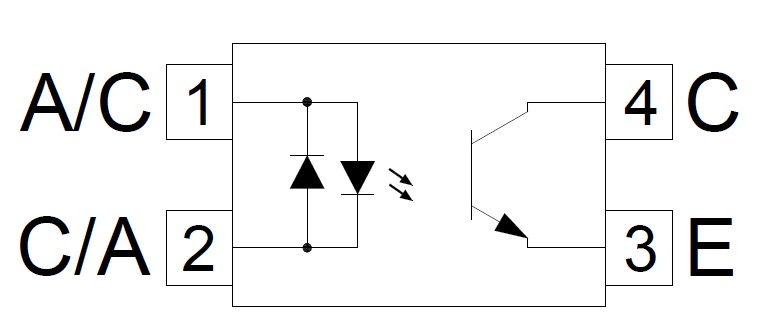

CTH214 Half Pitch MFP-4L 3750 AC 1 20~300 - -55~110

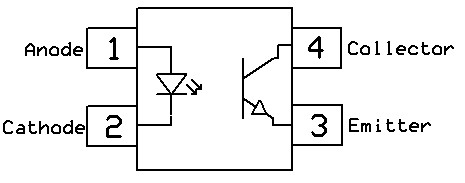

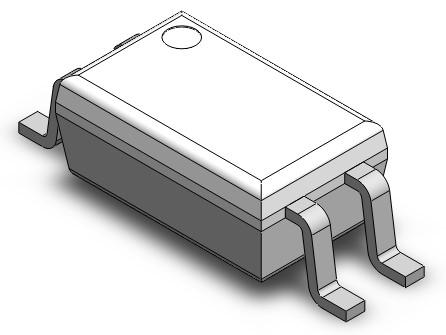

CTH217 Half Pitch MFP-4L 3750 DC 1 50~600** - -55~125
CT1010-W Long Creepage-4L 5000 DC 1 50~600** - -55~125

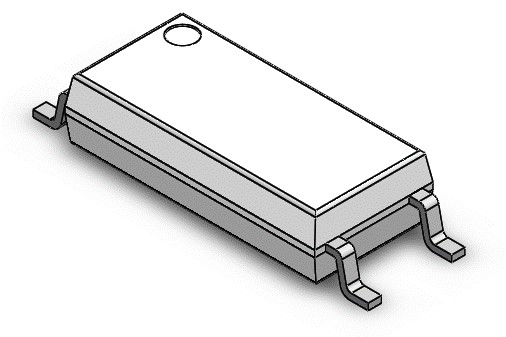

CT1011-W Long Creepage-4L 5000 DC 1 60~300** - -55~125
CT1012-W Long Creepage-4L 5000 DC 1 63~125** - -55~125
CT1013-W Long Creepage-4L 5000 DC 1 100~200** - -55~125
CT1014-W Long Creepage-4L 5000 DC 1 160~320** - -55~125
CT1015-W Long Creepage-4L 5000 DC 1 50~150** - -55~125
CT1016-W Long Creepage-4L 5000 DC 1 100~300** - -55~125

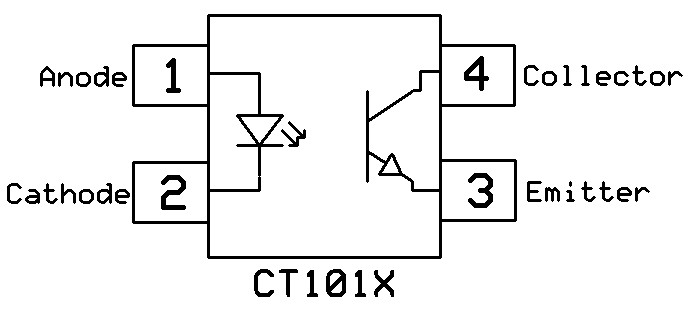

CT1017-W Long Creepage-4L 5000 DC 1 80~160** - -55~125
CT1018-W Long Creepage-4L 5000 DC 1 130~260** - -55~125
CT1019-W Long Creepage-4L 5000 DC 1 200~400** - -55~125

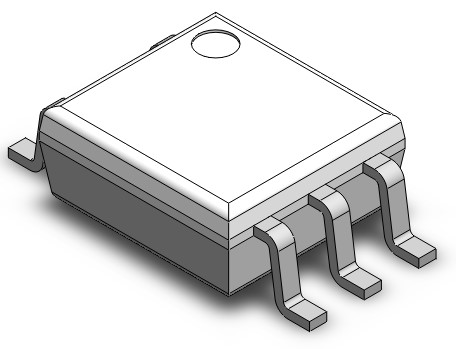

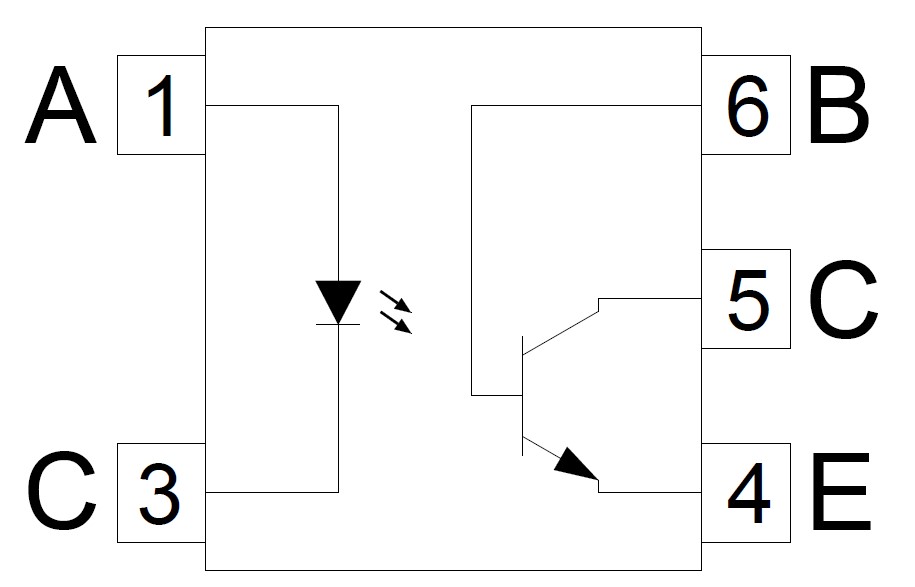

CTM131 MFP 3750 DC 2 50~600 - -55~115

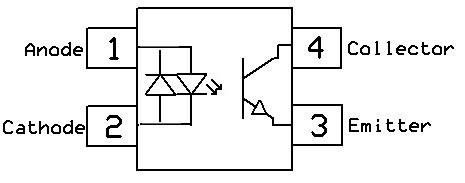

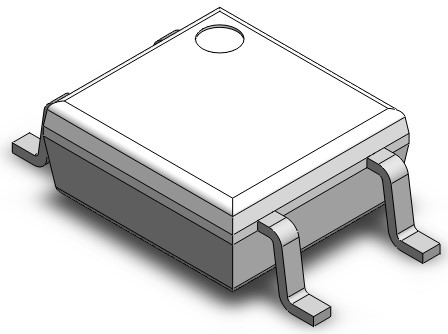

CT354 MFP-4L 3750 DC 1 50~600 - -55~110
CT357 MFP-4L 3750 DC 1 50~600 - -55~110
*CTR option available
**Low input current version
◎Forming option available for DIP-4, DIP-6 and DIP-8
