Products : Photo Coupler : Isolated IGBT MOSFET Gate Driver
P/N Circuit Package VISO
(rms)
(V)		 Output
Current
(A)		 Supply
Current
Max.
(mA)		 Pulse Width
Distortion
Max.
(ns)		 TPHL/TPLH
Max.
(µs)		 TOPR
(℃)		 Picture

CTL5701
 Long Creepage-5L 5000 1 5 200 300/300 -40 ~ +100
CTL5702
 Long Creepage-5L 5000 2.5 5 200 300/300 -40 ~ +100

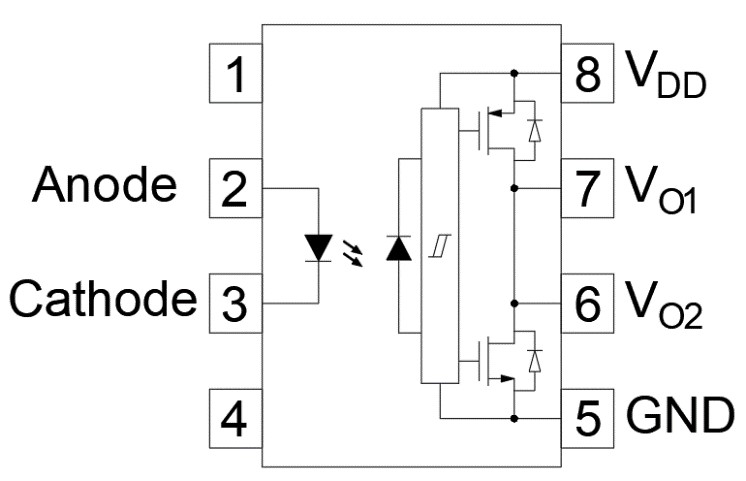

CT3120
 DIP-8 5000 2.5 3 Typ.30 300/300 -40 ~ +100
CT3150
 DIP-8 5000 1 3 300 500/500 -40 ~ +100

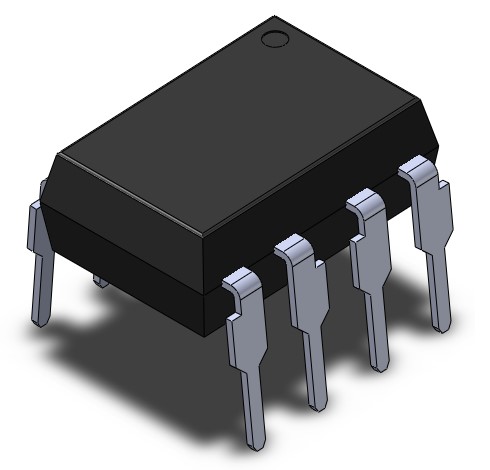

CT350
 DIP-8 5000 2.5 5 300 500/500 -40 ~ +110
CTS314
 SDIP-6 5000 1 3 Typ.30 300/300 -40 ~ +100
CTS480
 SDIP-6 5000 50mA 3 250 250/250 -40 ~ +100

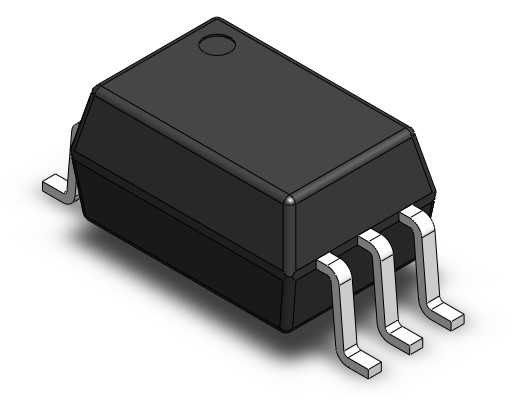

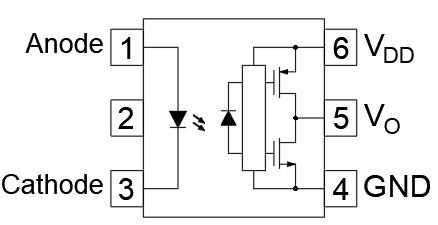

CTS700
 SDIP-6 5000 2.5 5 300 500/500 -40 ~ +110
CTS701
 SDIP-6 5000 0.6 3 Typ.30 300/300 -40 ~ +100
