Products : Photo Coupler : Darlington

P/N	Circuit	Package	V_ISO (rms) (V)	Channel	CTR* (%)	BV_CEO Min. (V)	T_OPR (℃)	Picture

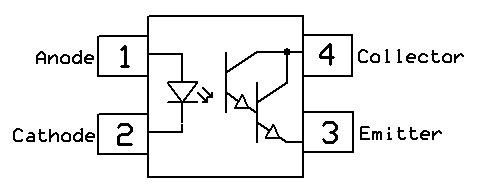

CT815		DIP-4	5000	1	600~7500	40	<-55~110

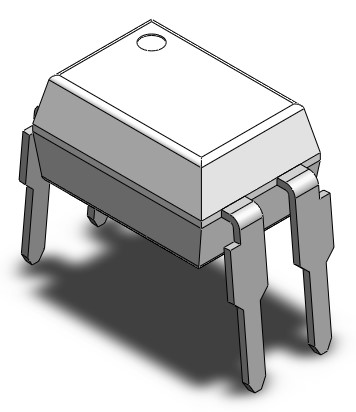

CT852		DIP-4	5000	1	1000~15000	350	<-55~100

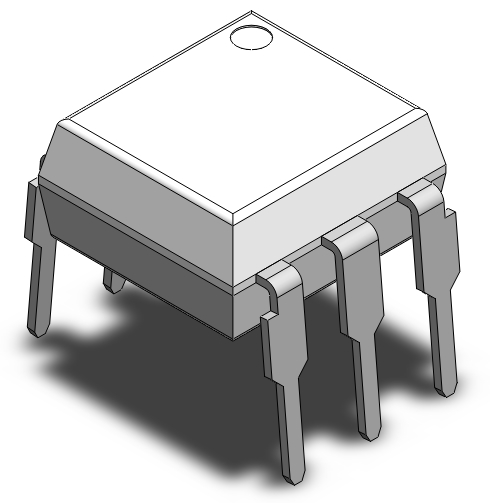

4N29		DIP-6	5000	1	Min 100	55	<-55~100

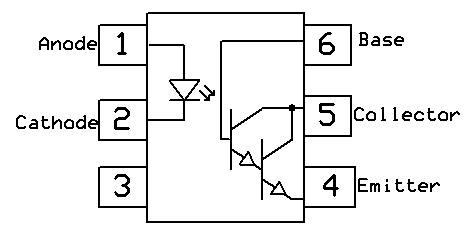

4N30		DIP-6	5000	1	Min 100	55	<-55~100
4N31		DIP-6	5000	1	Min 50	55	<-55~100
4N32		DIP-6	5000	1	Min 500	55	<-55~100
4N33		DIP-6	5000	1	Min 500	55	<-55~100

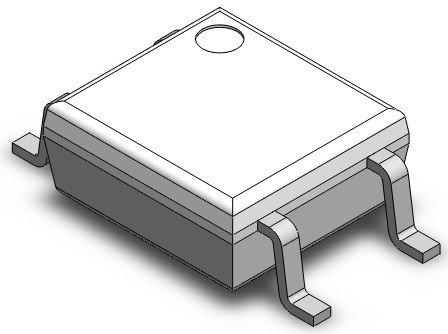

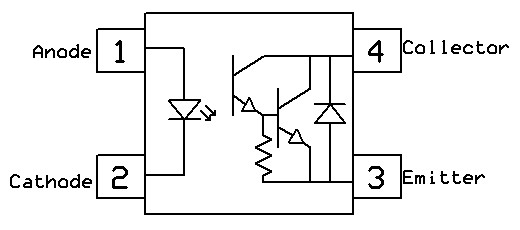

CT452		MFP-4L	3750	1	1000~15000	350	<-55~100
CT415		MFP-4L	3750	1	Min 600	35	<-55~110

*CTR option available
◎Forming option available for DIP-4, DIP-6 and DIP-8
